Upgrade Your Deck to Amazing

The StoneDeks SilcaGrate is a revolution in the deck-building industry. Go beyond wood or composite materials and open up a world of choices!

Introducing the SilcaGrate™

The SilcaGrate™, developed by StoneDeks, is a patented structural underlayment system that turns ordinary wood or metal-framed decks into durable stone, paver, brick, or tile surfaces.

  • Material: Made from thick, engineered recycled polymer, SilcaGrate has a hexagonal honeycomb structure that provides support every 2 inches.
  • Dimensions & Weight: Each grate measures 16″ × 18″, is 1.5″ thick, and weighs about 4 lbs.
  • Certified Strength: Tested to hold over 500 lb per grate for at least 30 days, supporting heavy surface materials safely.

How the SToneDeks SilcaGrate™ WOrks

For new construction or existing deck framework, the StoneDeks SilcaGrate™ is an easy upgrade that adds the beauty of stone, Travertine pavers, porcelain tiles, or brick to your outdoor oasis. Our SoilGrid® is the perfect partner to join your deck and hardscape in a unified design and style.

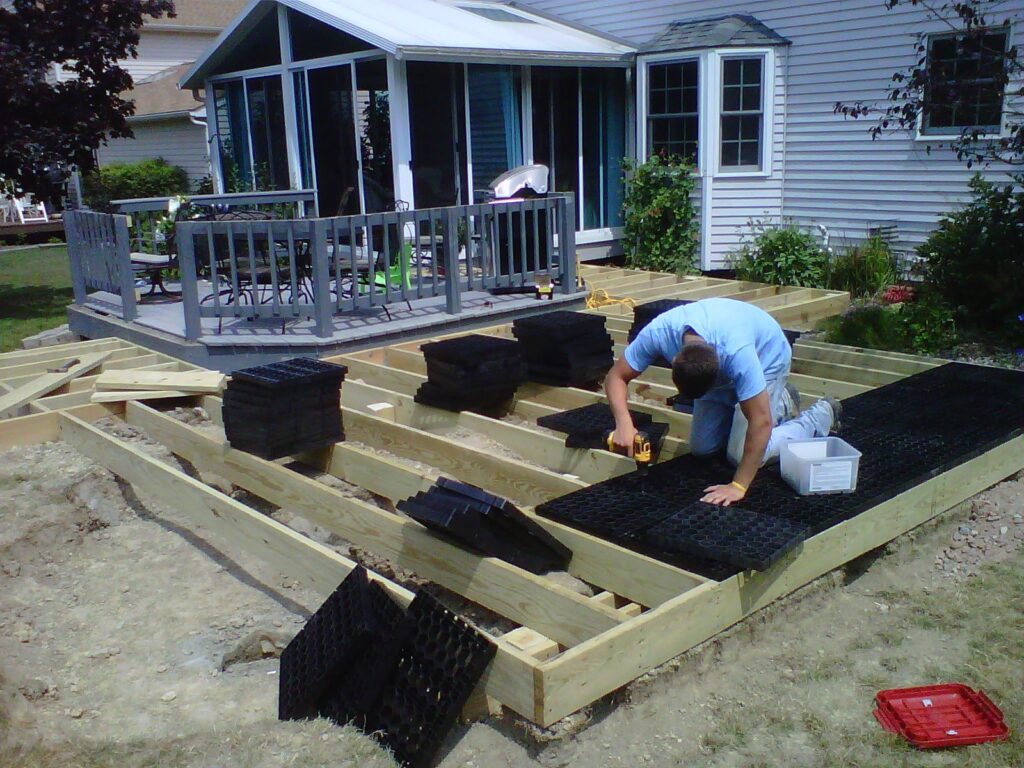

Photo of deck builder installing SilcaGrates as part of a deck transformation using the Silca System.

Installation on Joists

Placed directly over joists (wood or metal) for new construction.

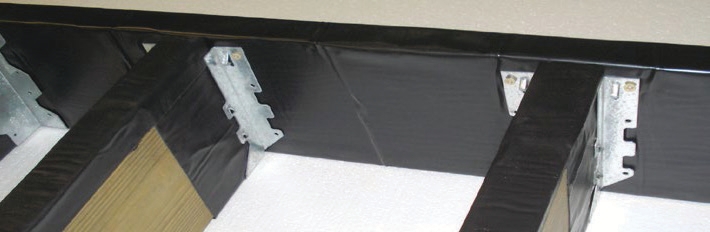

Inside of joists with cleats for existing deck structures. The grates are screwed in using #9, 3″ deck screws at each corner.

Cutting & Fit

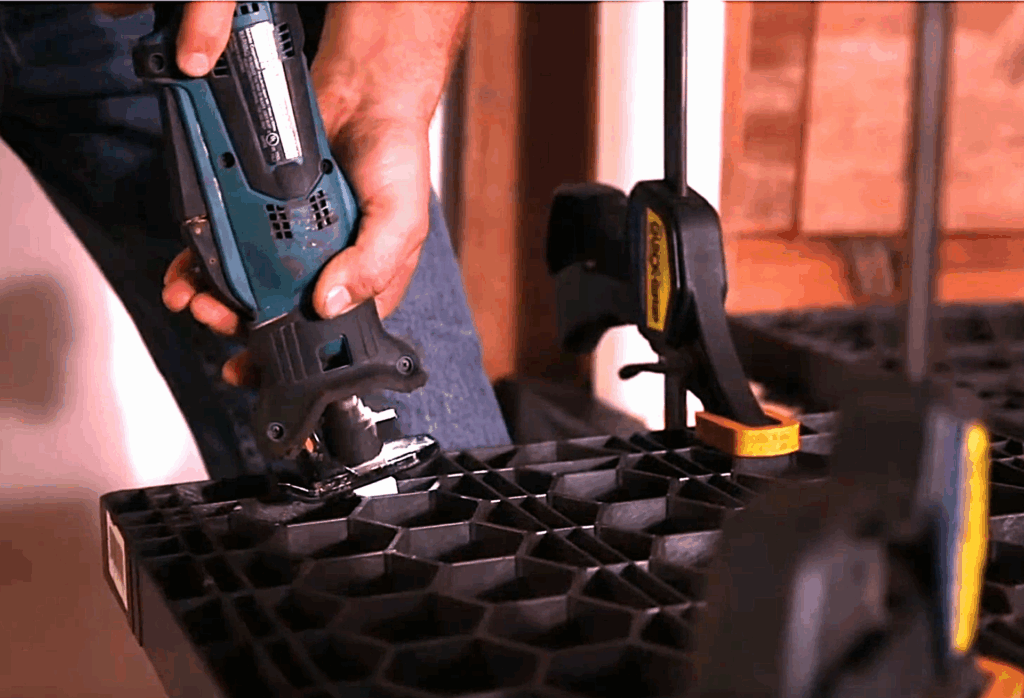

Grates are easily trimmed with a handsaw or circular saw to fit edges, around posts, or to adjust layout.

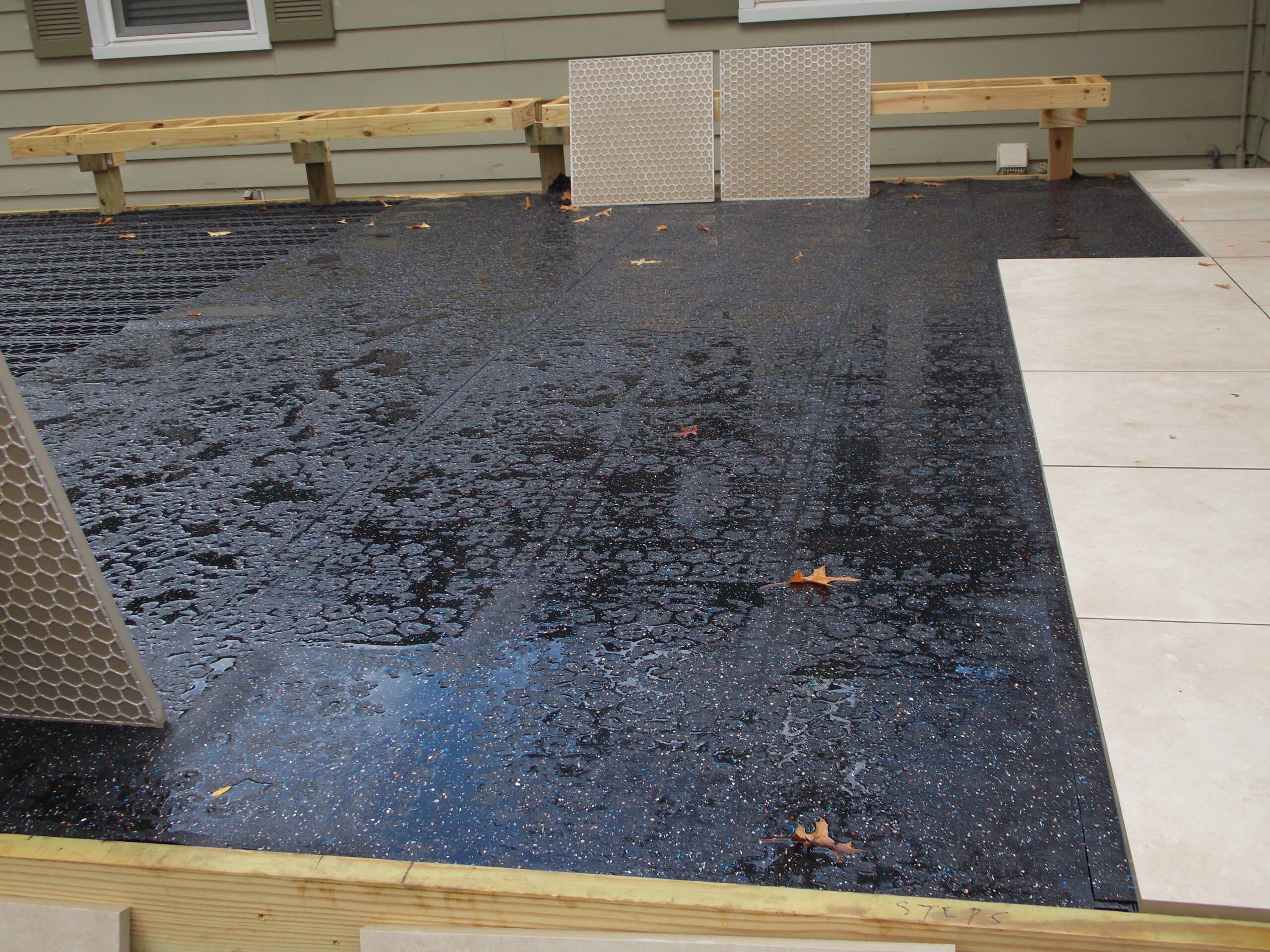

Silcamat installation over Silcagrate for porcelain pavers on deck

Accessory Layers

SilcaMat™ or geotextile blankets are laid over the grates for mold resistance and noise reduction.
SilcaSpacers™ ensure uniform spacing for tile or stone joints, improving alignment and drainage.
Adding travertine tiles to the Stonedeks system of silcagrate and silcamat for a long lasting and maintenance free deck

Surface Application

Finally, stone, porcelain, pavers, brick, or tile (ranging from ¾″ to 3″ thick) are laid over the system. Polymeric sand is typically used between joints.

For Hardscapes: the SoilGrid®

The SoilGrid®, developed by StoneDeks, enables you to build stronger hardscapes by stabilizing the base material.

  • +95% Permeable ground reinforcement
  • Up to 50% base reduction in excavation
  • Reduced settling issues
  • Installation without heavy construction equipment

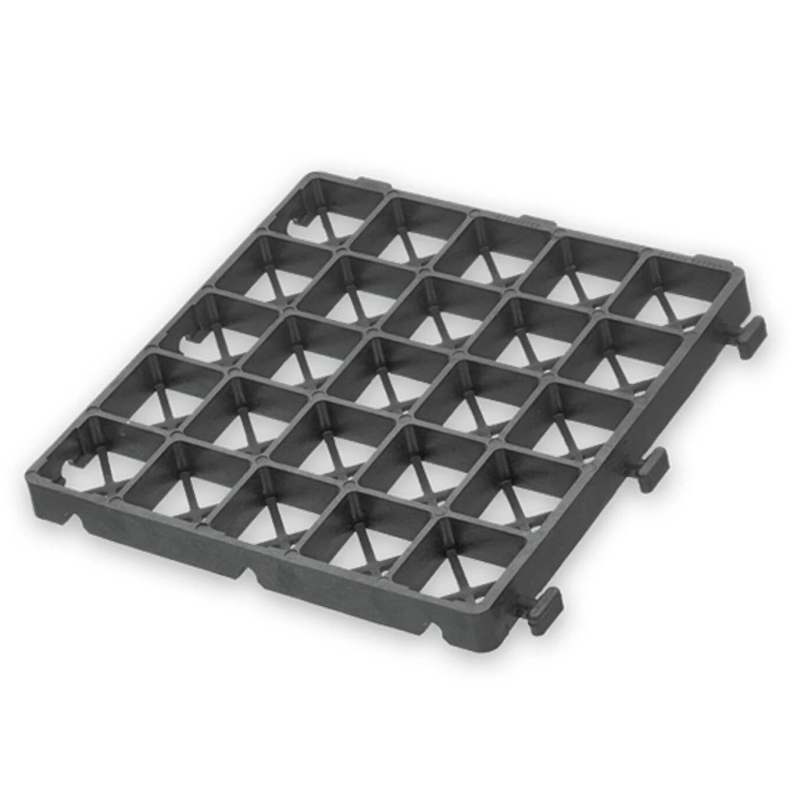

  • Each grid is 13” x 13” x 1” thick (1.17 sq ft)
  • Comes in pre-connected sheets 52” x 39″ for fast installation
  • Stable from temperature range -58° F to +194° F

how the SoilGrid® system works

Save money and time on your substructure.
The SoilGrid® HS30 is a heavy duty linking grid system that allows you to build stronger hardscapes by stabilizing the base material and without heavy construction equipment.

Excavate And Prep

Excavate base base to ½ of ICPI or local building code. (may vary with soil conditions). Install geotextile fabric. Install aggregate base and compact.

INstall SoilGrid®

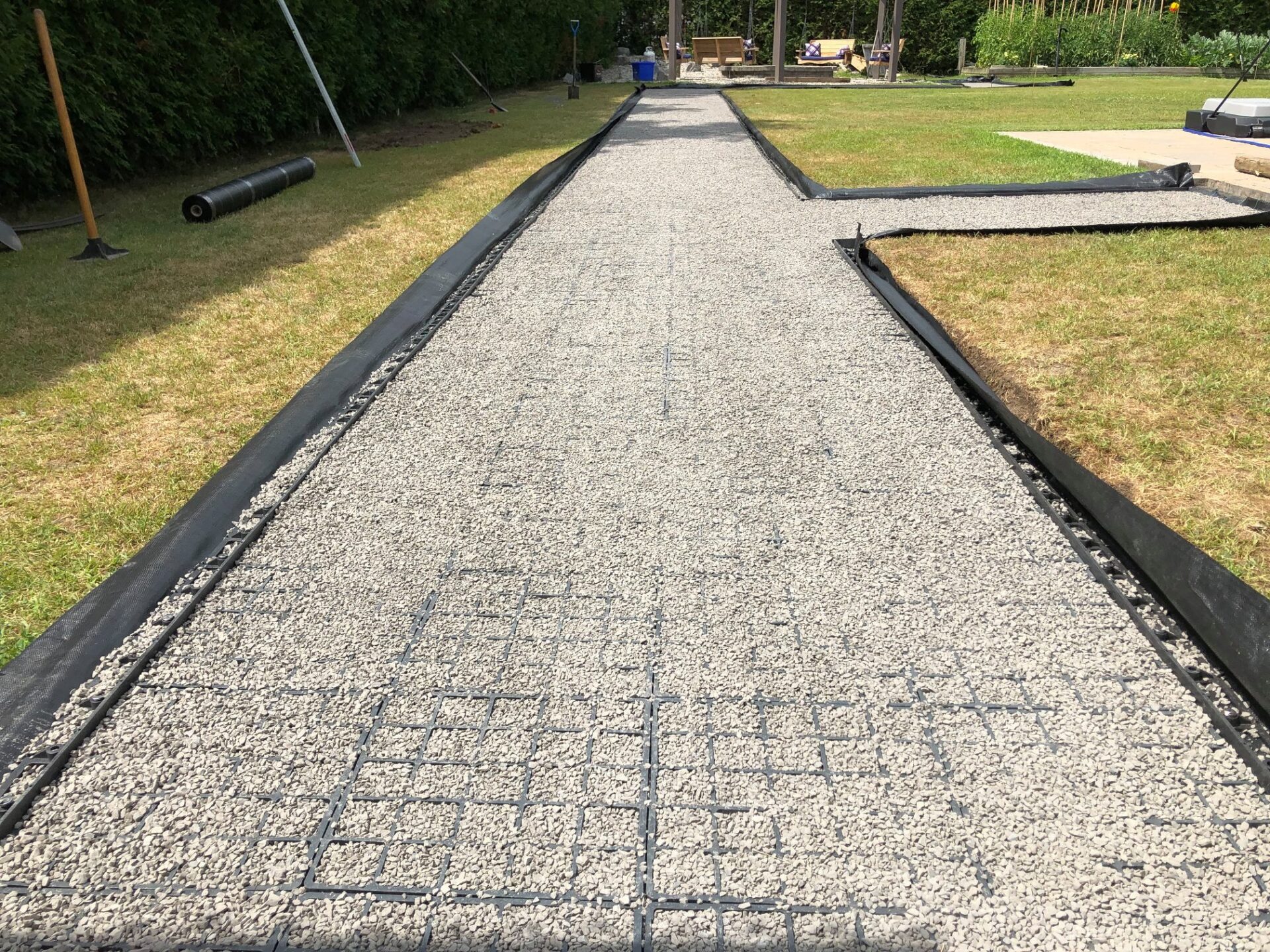

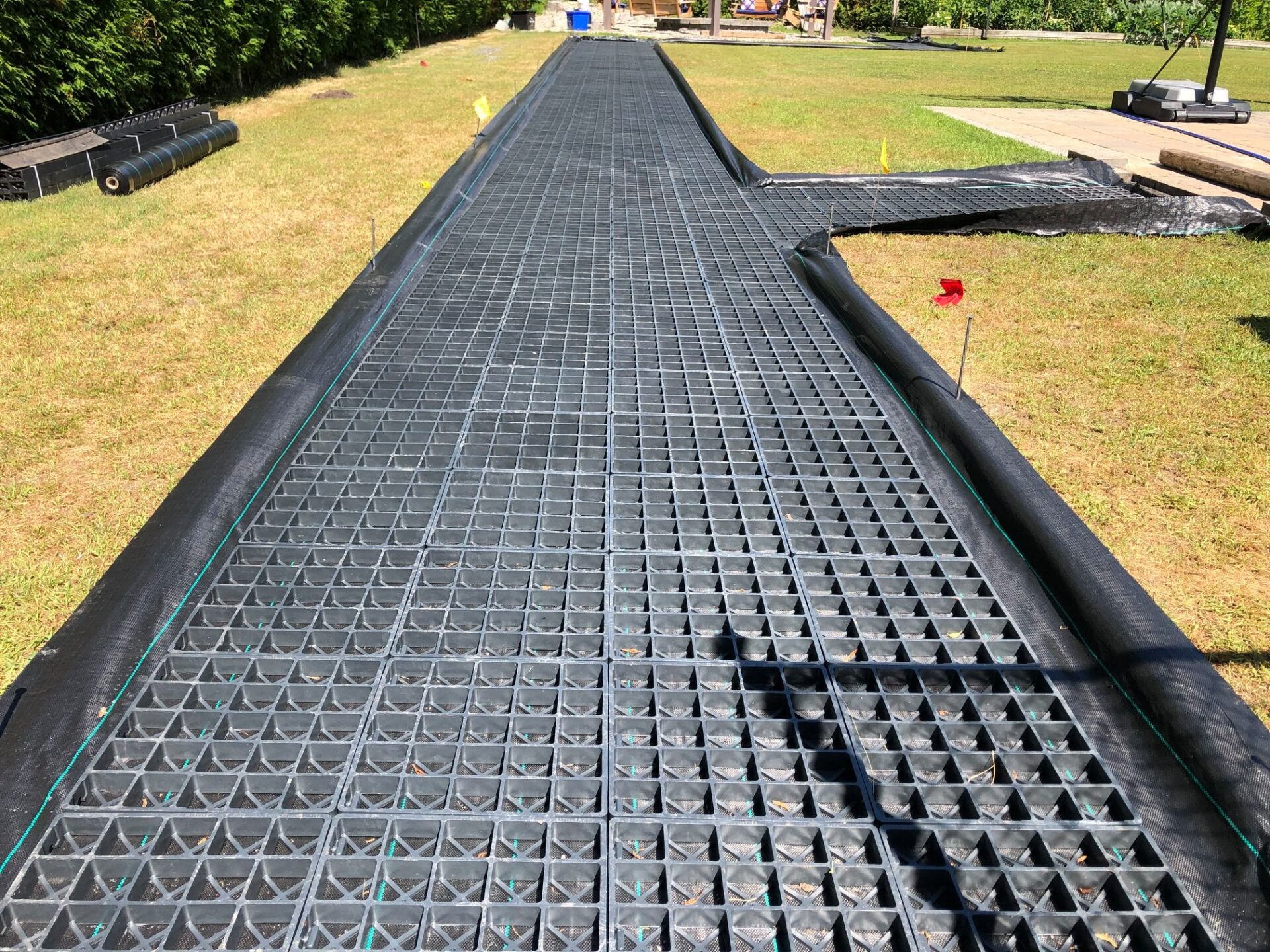

Start installation at a corner of the area. Each SoilGrid® interlocks to give you an easy, straight, and solid foundation. Fill the installed SoilGrid® with aggregate and compact to level.

Install Pavers

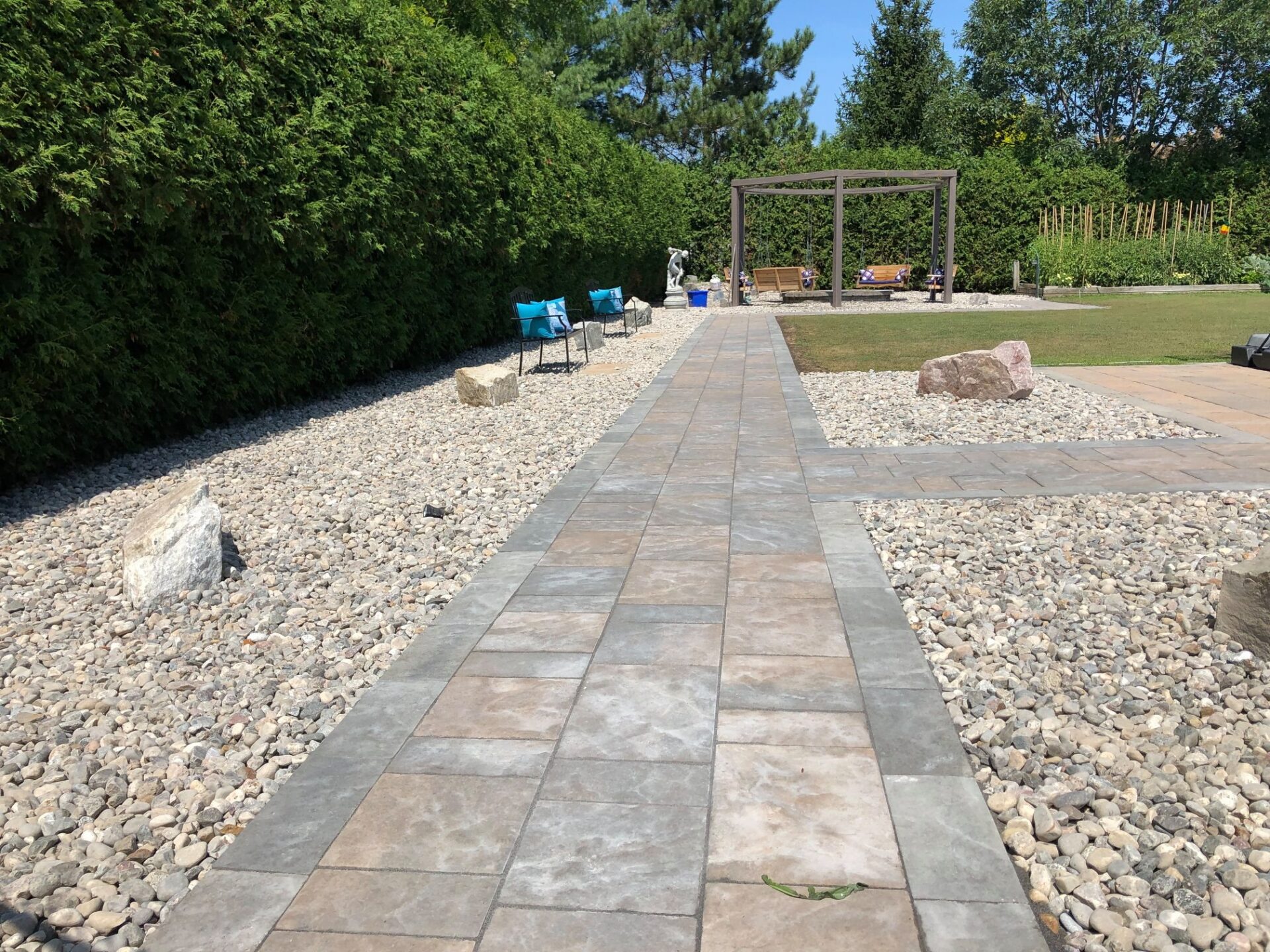

Install pavers. Additional textile, adhesive, or polymeric sand can be used depending on your conditions. Your hardscape is more than 90% permeable. Perfect for walkways, driveways, patios, and pools.

Additional StoneDecks Products

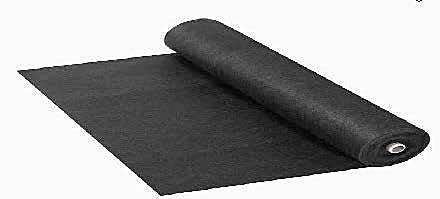

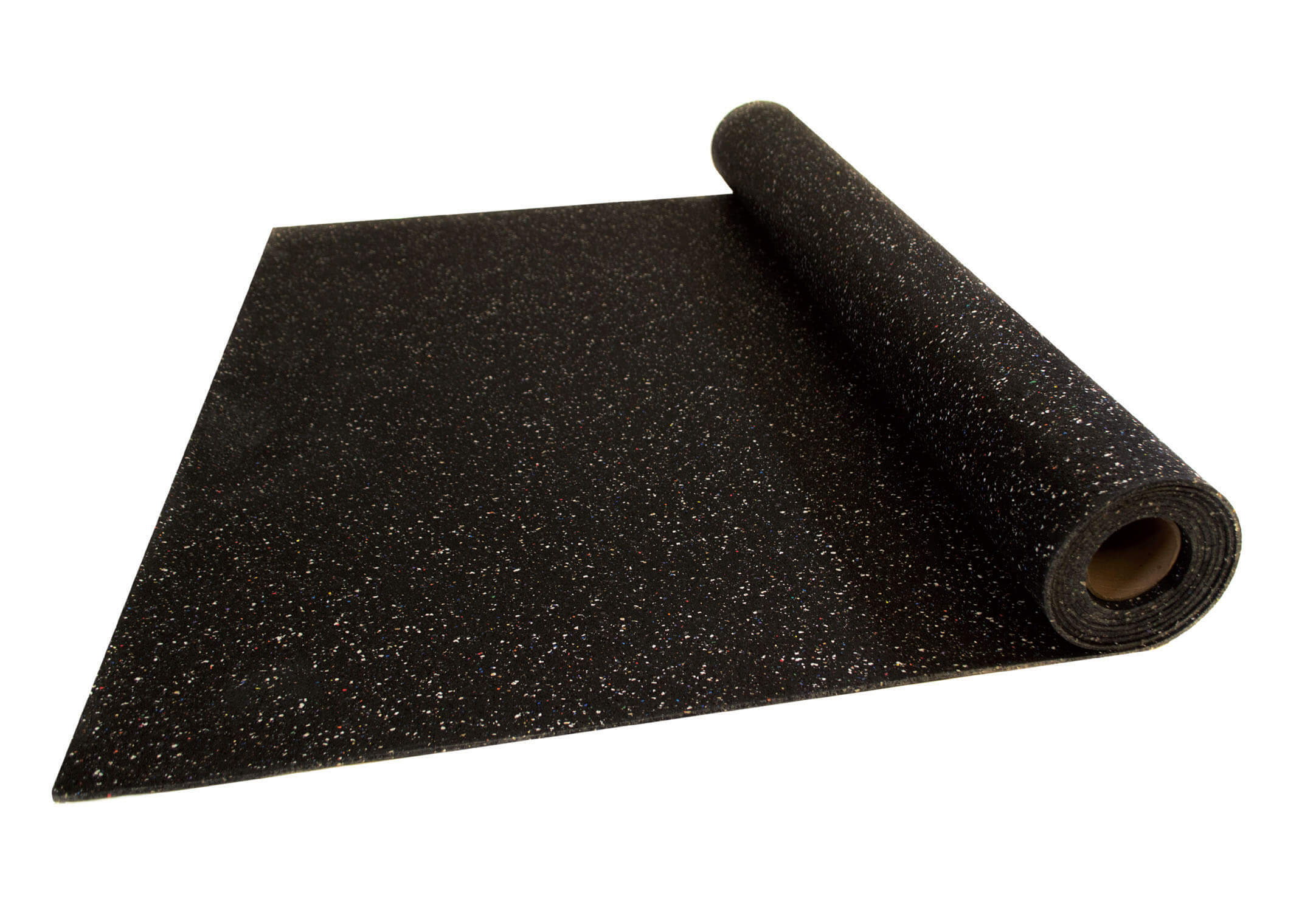

SilcaMat™

SilcaMat™ is a permeable, rubber underlayment that can be installed on top of the SilcaGrate™ and underneath the porcelain, stone, or other pavers. SilcaMat™ reduces the sliding and horizontal movement of pavers during installation, as well as deadens sound for the finished floor.

The SilcaMat™ is resistant to mold, bacteria, and fungi and is
extremely stable in both cold and hot climates. It’s also
eco-friendly because it’s made from 94% recycled rubber.

Dimensions: 4’ x 5’ x 1/8” (2mm)
Coverage: 200 Square Feet
Material: Permeable Recycled Rubber
Weight: 75 lbs
Dimensions: 48 × 9 × 9 in

Temperature Stability: ~40 ℉ to +240℉ (-40℃ to +115℃)

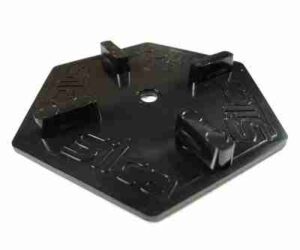

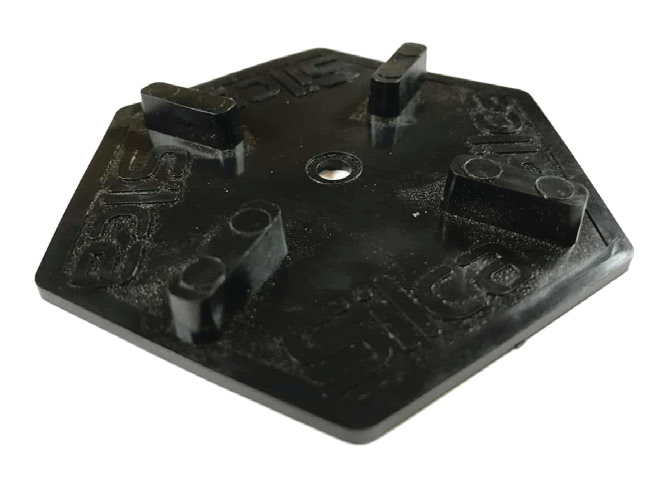

Silcaspacer™

SOLD BY 100 CT.

3” x 3” base – 1/16” tab – 1/4” tall and 3/16” wide

Flexible Black
Used for ground application of porcelain pavers.

Rigid Black
Used for porcelain paver applications on decks and elevated surfaces. Spacers are not necessary if using SilcaMat™.

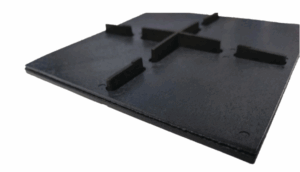

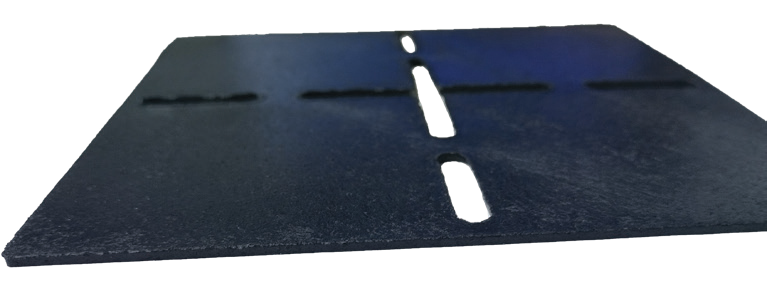

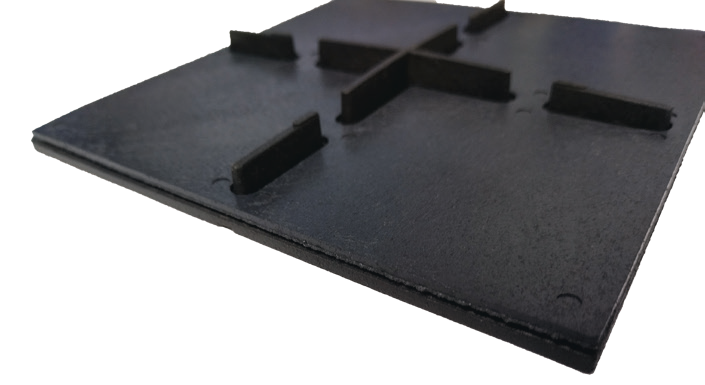

Rise-It spacer™

SOLD BY 100 CT.

6”X 6”, 1/8” BASE WITH 1/8” TAB THAT IS 3/8” TALL

For use with porcelain pavers installed with open joints.

How to Order

For more information or to order these products, or to become a supplier, call (330) 821-1585 or fill out our contact form:

Contact Us
